How Are Geosynthetics Made? A Complete Guide to Manufacturing Processes

Geosynthetics are engineering materials used in civil, environmental, and geotechnical engineering, including high-density polyethylene (HDPE) geomembranes, linear low-density polyethylene (LLDPE) liners, geotextiles, and geogrids. Their manufacturing processes vary depending on the material type and intended function. The following details the production processes of the main geosynthetics.

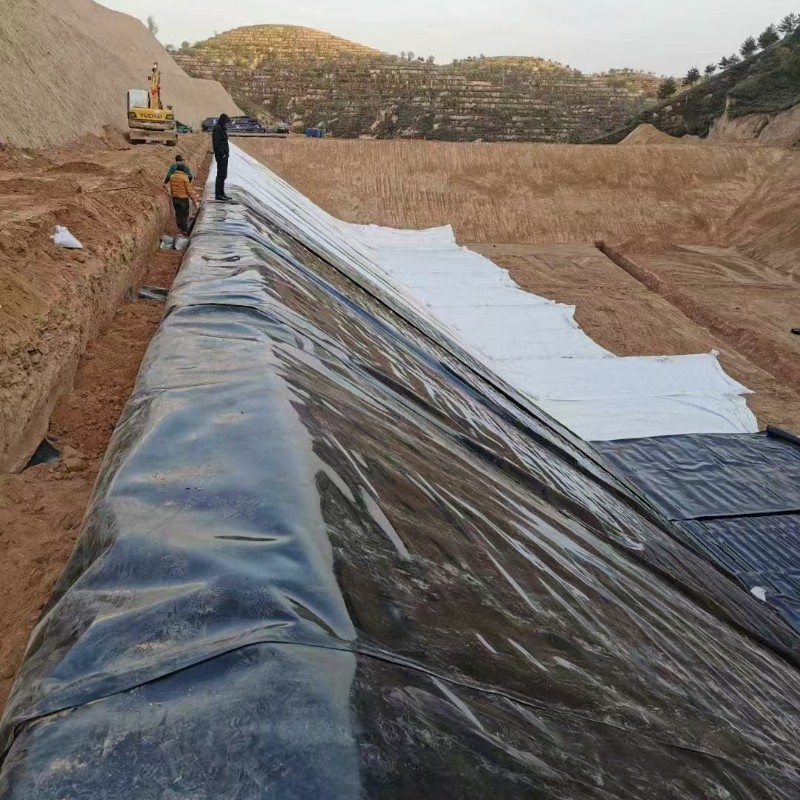

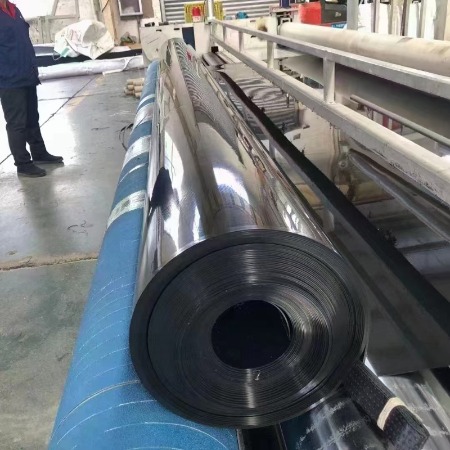

Geomembranes are anti-seepage barriers made from polymers such as high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE).

Raw Materials:

Primary resin (e.g., virgin HDPE/LLDPE granules)

Additives:

Carbon black (2-3% for UV protection), antioxidants, and stabilizers.

Production Method:

Blow molding (applicable to linear low-density polyethylene (LLDPE) and soft high-density polyethylene (HDPE)):The melted resin is extruded into a tube, inflated into a film, and then cooled and flattened into a sheet.

Advantages: Produces uniform, biaxially oriented, tear-resistant films.

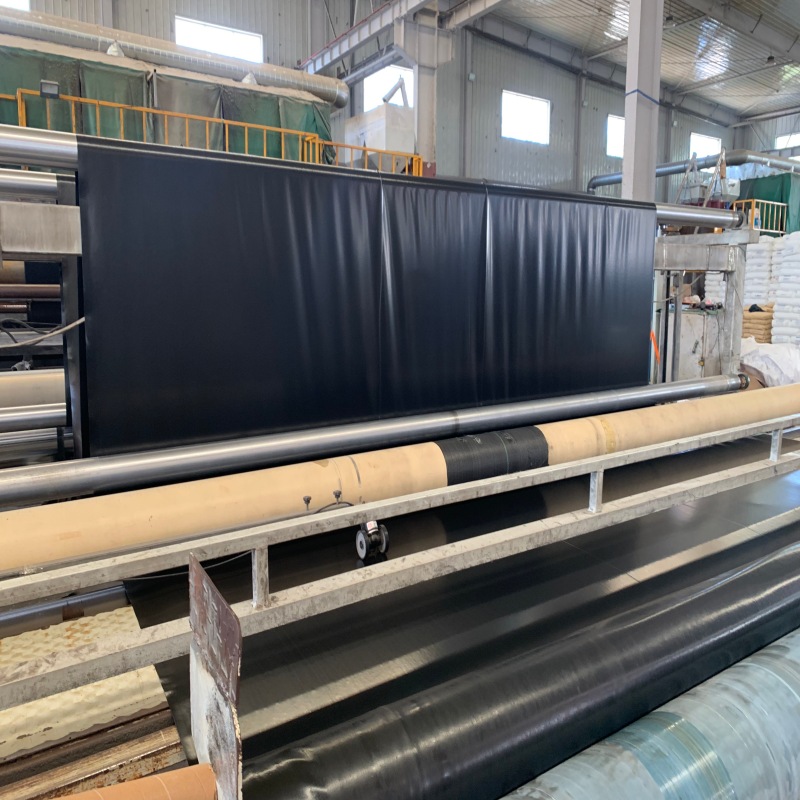

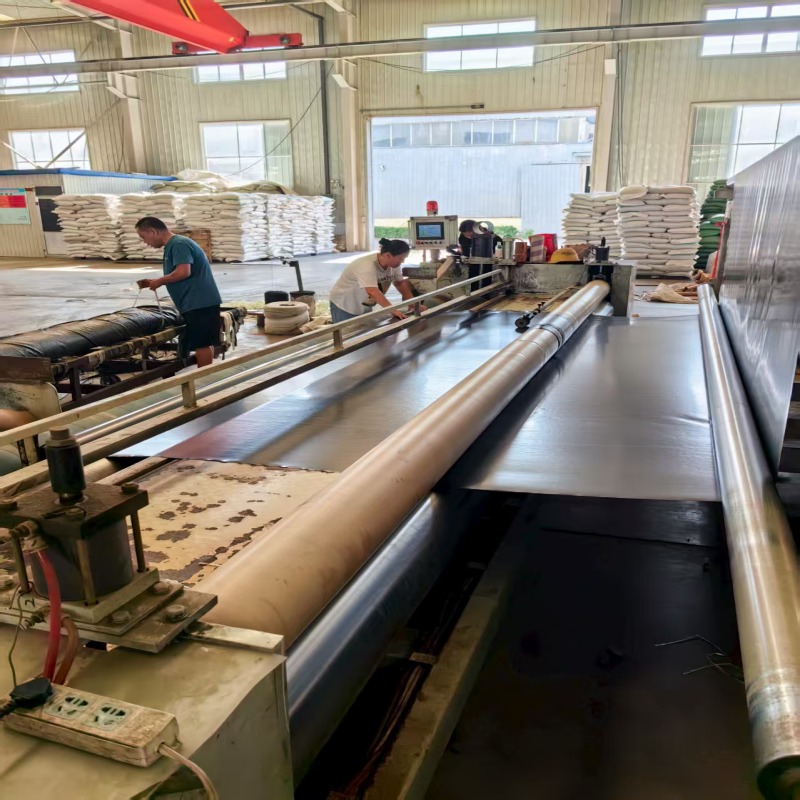

Calendaring (for thick high-density polyethylene (HDPE)):The molten polymer is pressed between heated rollers into a sheet (0.5-3.0 mm thick).

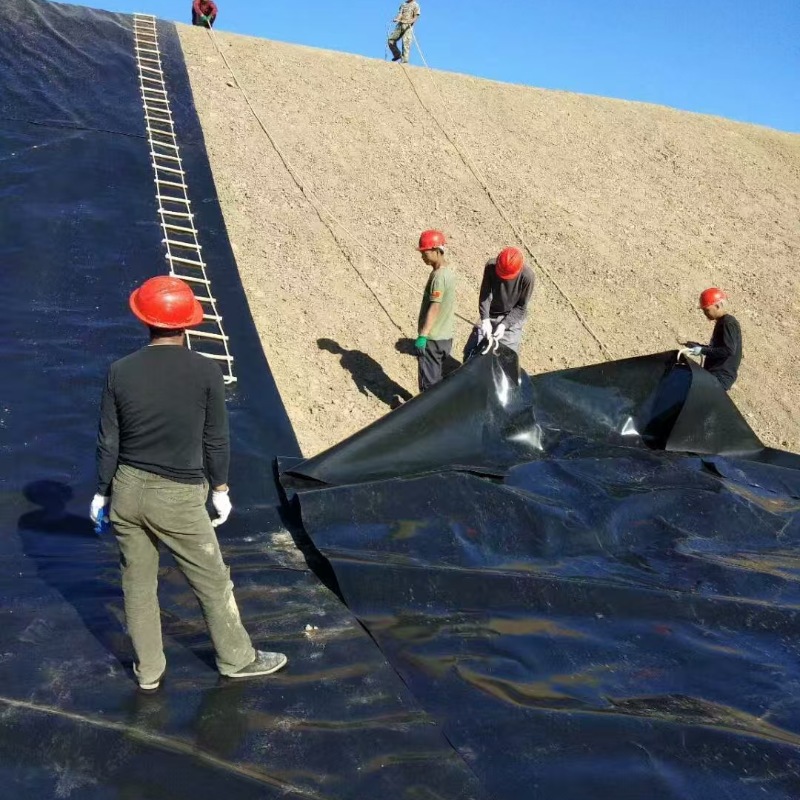

Advantages: Precise thickness control, ideal for landfill liners (e.g., 2 mm thick HDPE geomembranes).

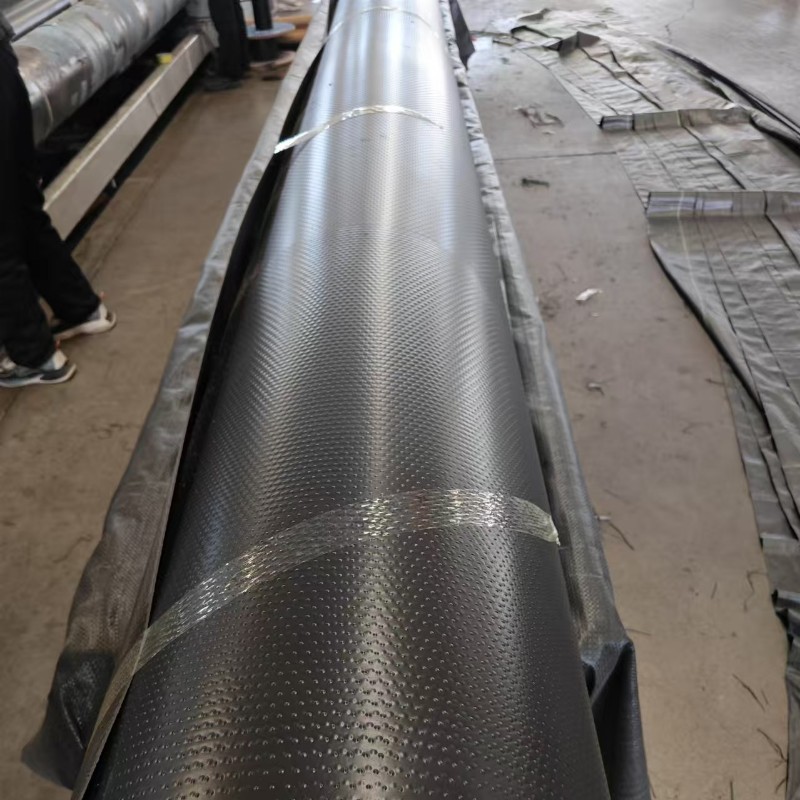

Texturing (GMST/GMT types):

Embossed or co-extruded processes create a striated/papillated surface, enhancing slope friction (friction angle 25-35°).

Quality Control:

Tests: Tensile strength (HDPE ≥ 25 MPa), elongation (LLDPE ≥ 700%), and permeability (≤ 1 × 10⁻¹³ cm/s).

Certifications: GRI GM13, ASTM D6693, and ISO 9001.

Geotextiles are permeable fabrics used for filtration, drainage, or reinforcement.

Material:

Polypropylene (PP) or polyester (PET) fibers.

Manufacturing Process:

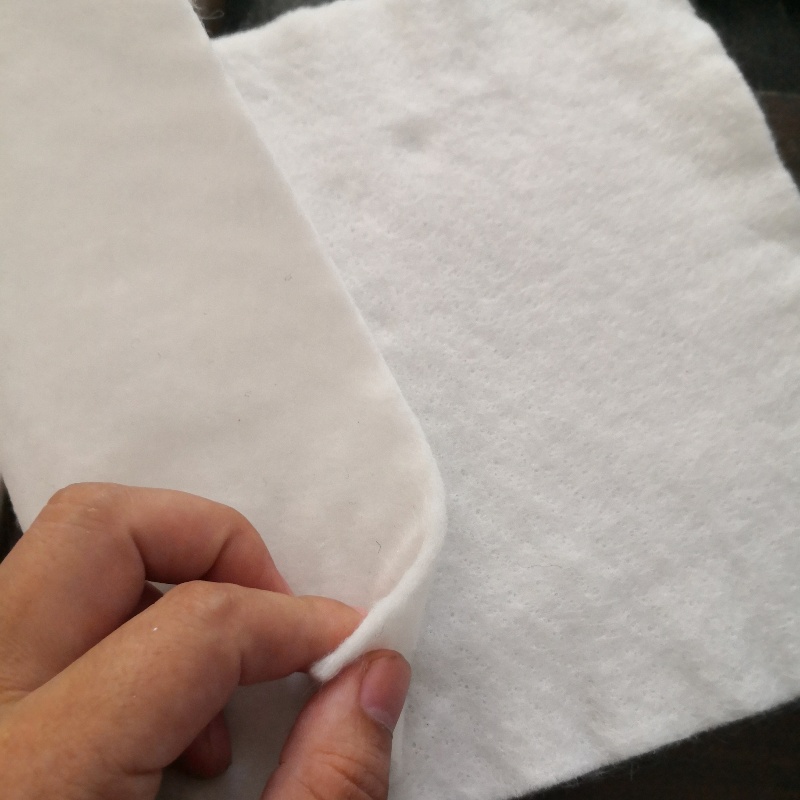

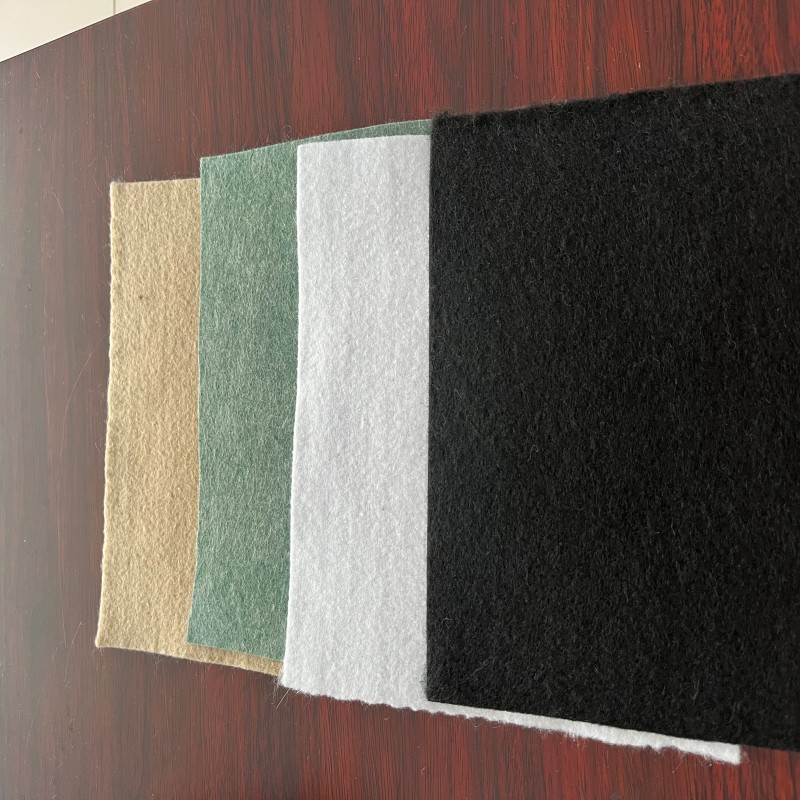

Non-woven geotextiles:

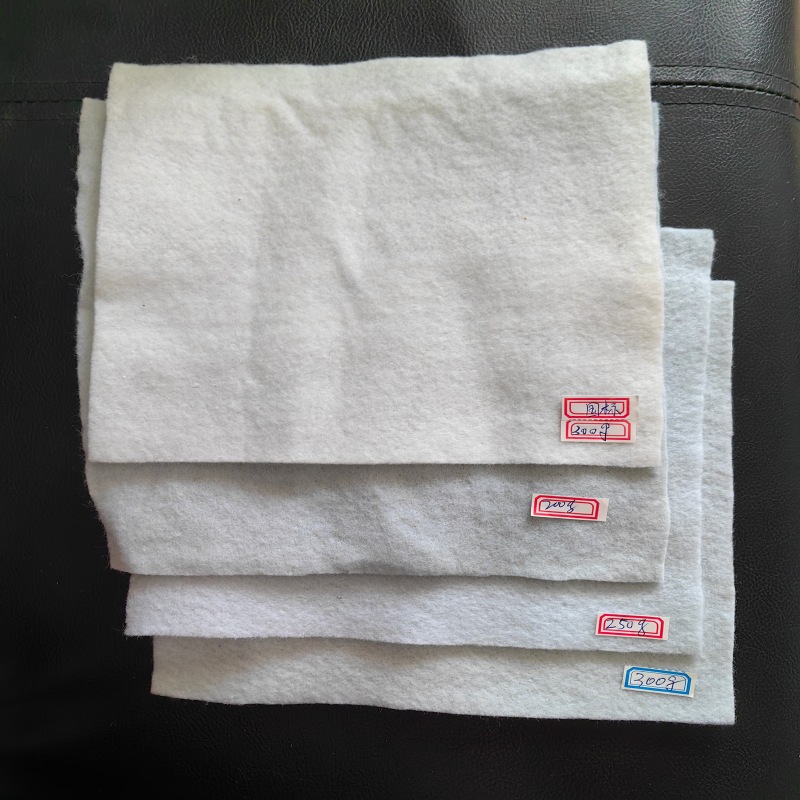

Fibers are randomly laid and bonded by needle punching or hot melt bonding (e.g., 300g/m² PET geotextile).

Applications:Landfill drainage layers, root protection.

Woven geotextiles:

Fibers are woven into a grid pattern (e.g., with a tensile strength of 80kN/m for road reinforcement).

Key Properties:Puncture resistance, permeability (5-15 L/m²/s), and UV stability.

Geogrids:Made from extruded high-density polyethylene (HDPE) sheets, which are then stretched to create pores and interlock with the soil.Used for retaining walls and roadbeds.

Geonets:Extruded three-dimensional polymer structures used for drainage in landfills and slopes.

Construction:Bentonite is sandwiched between two layers of geotextile, needle-punched for added stability.

It exhibits self-healing properties when hydrated.

Concrete Canvas:A fabric impregnated with a dry concrete mix that hardens upon hydration.

Geotubes/Geobags:Woven polypropylene tubes filled with soil/sludge for erosion control.

Geosynthetics are manufactured through processes such as extrusion, weaving, calendering, and composite bonding, and are suitable for applications such as landfill liners, slope stabilization, and drainage systems. Advances in textured geomembranes and smart liners (with embedded sensors) continue to drive innovation.
