Geosynthetics in Slope Protection: Innovative Solutions with Geobags, Concrete Sheets, Geogrids, and Erosion Control Mats

Geosynthetics play a key role in modern slope protection and ecological restoration, providing engineered solutions for stabilizing slopes, controlling erosion, and promoting vegetation growth. Products such as geobags, concrete sheets, geogrids, and erosion control mats are widely used in highway, mining, and urban slope projects. These materials address challenges such as soil instability, runoff, and rockfall risks, while promoting sustainable environmental management.

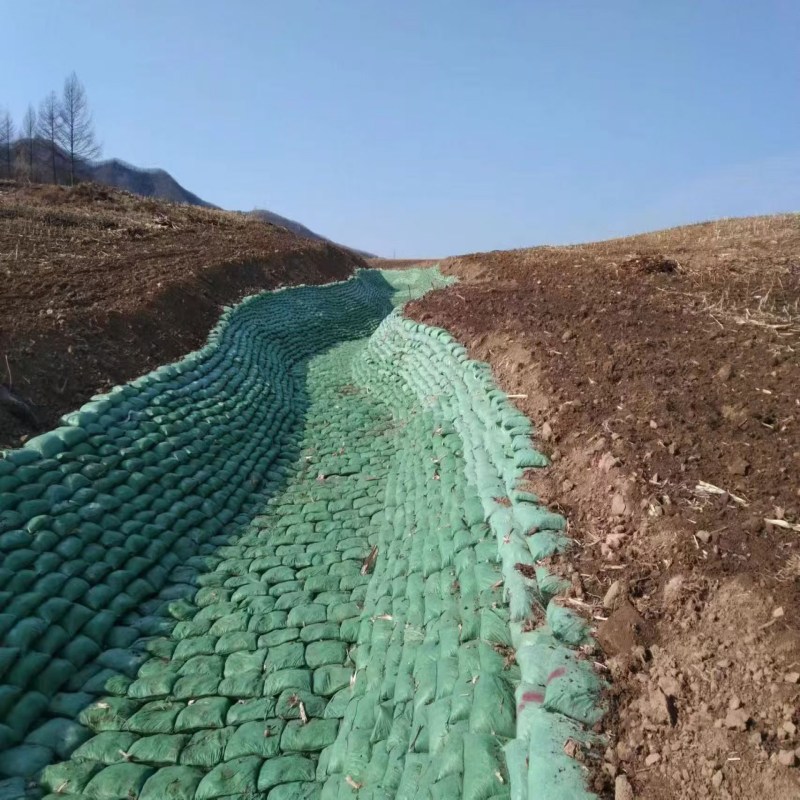

Function: Provides structural support and erosion control through soil containment.

Applications:

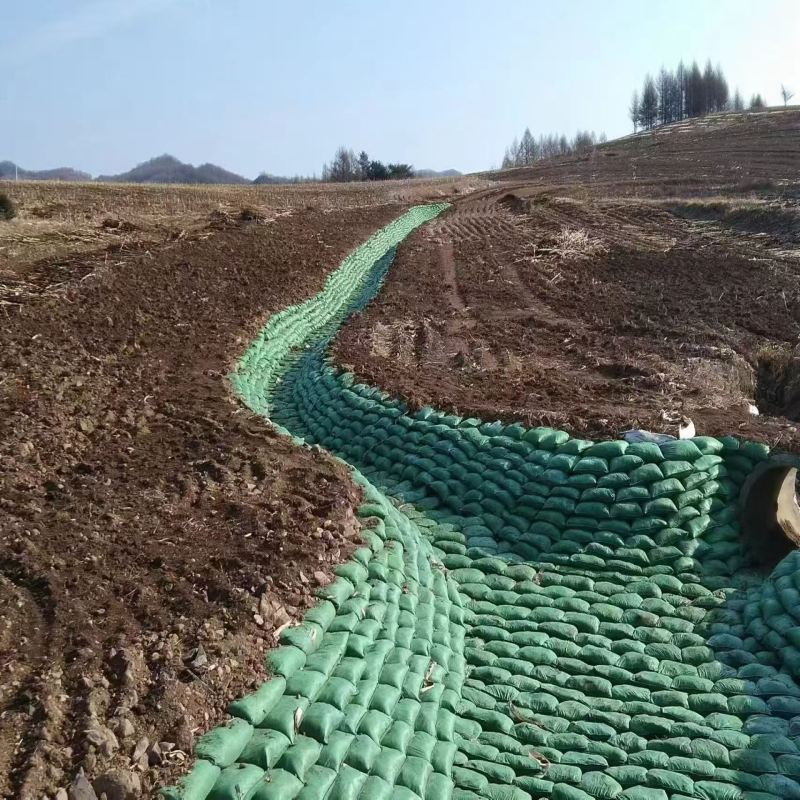

Slope Toe Reinforcement: Stacked geobags stabilize the slope toe and prevent erosion.

Temporary Slope Protection: Used for emergency slope repairs to prevent sediment loss during heavy rains.

Advantages:

Quick deployment and adaptability to irregular terrain.

Permeable design allows for drainage while retaining soil particles.

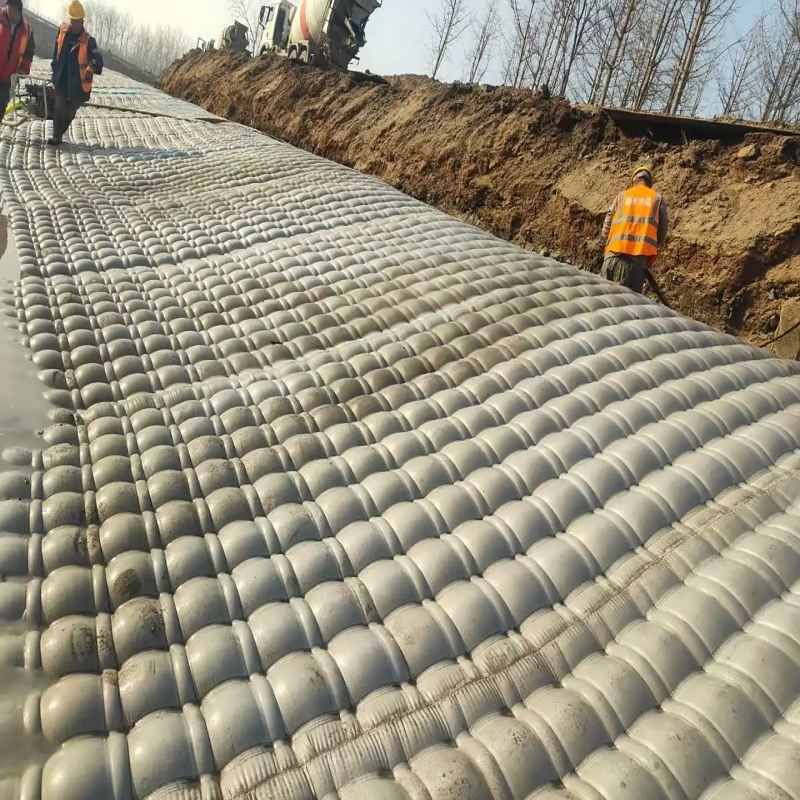

Function: A flexible, cement-impregnated fabric that hardens upon hydration to form a durable protective layer.

Applications:

Steep Slope Protection: GCL can be sprayed or laid on unstable slopes to protect against surface erosion and rockfall.

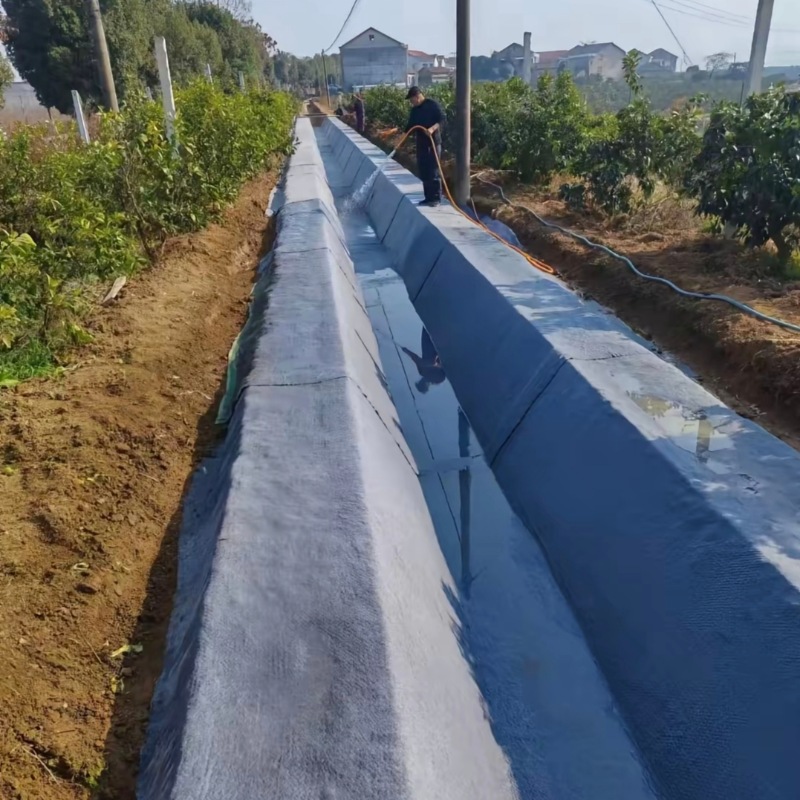

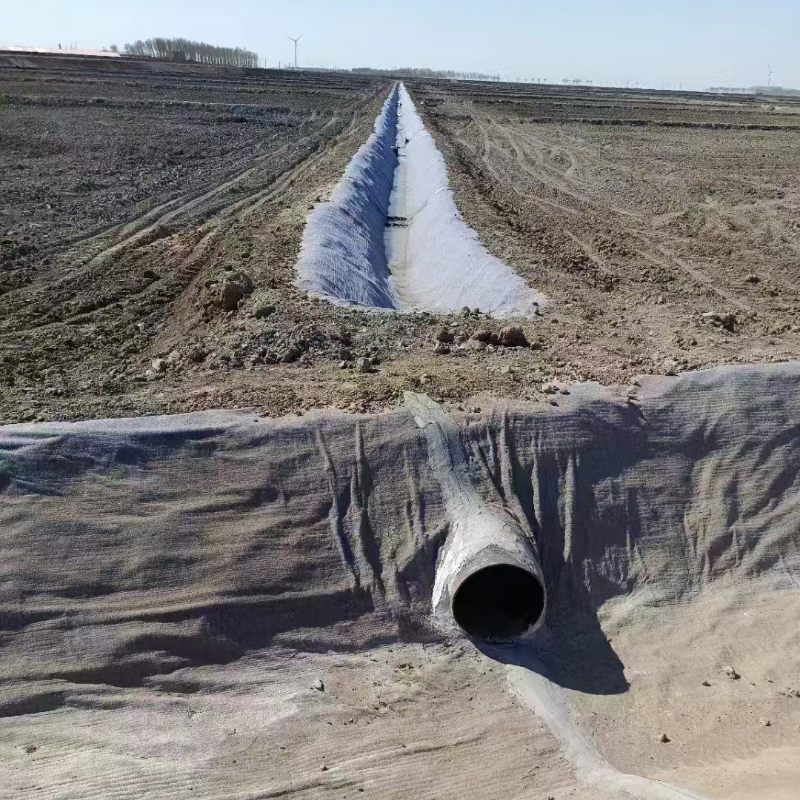

Ditch Lining: Used in drainage channels to protect against high-velocity water.

Advantages:

Instant structural strength (sets within 24 hours), requiring no mixing or curing.

Can be integrated with vegetation; pre-seeded varieties support greening.

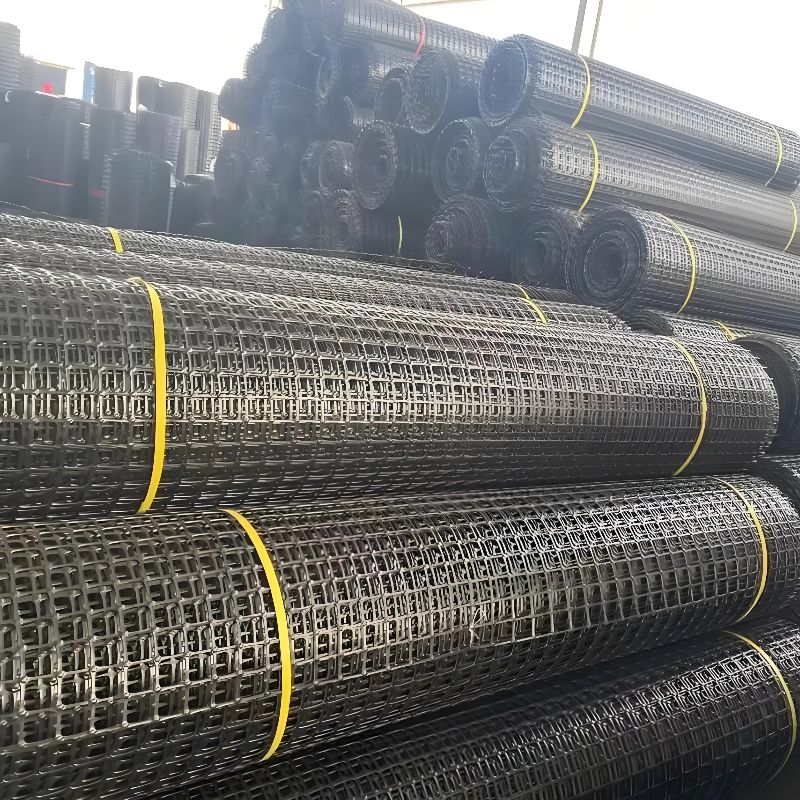

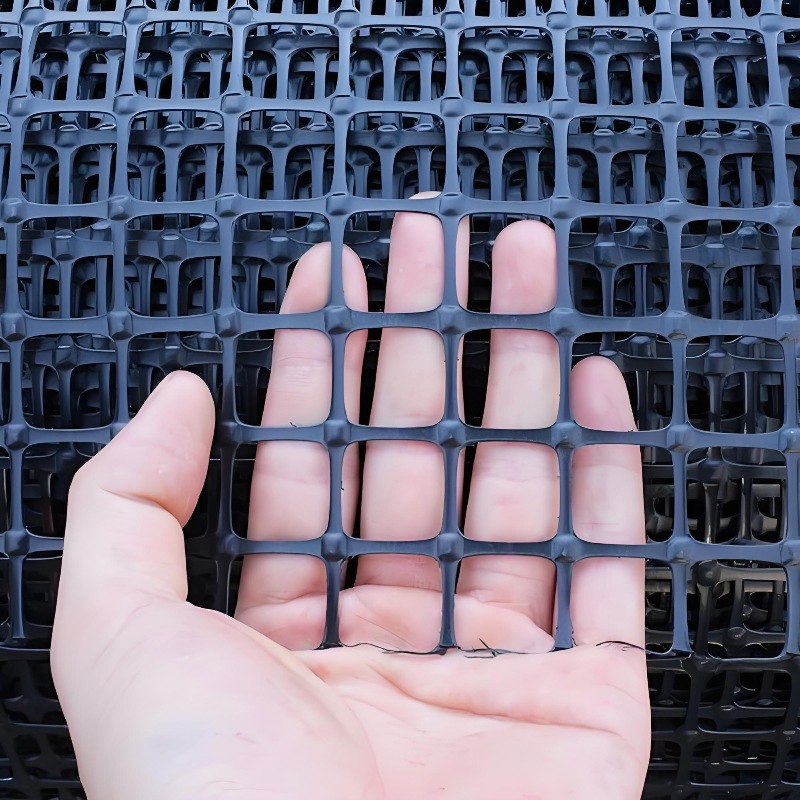

Function: A high-strength polymer grid that reinforces soil through an interlocking structure.

Applications:

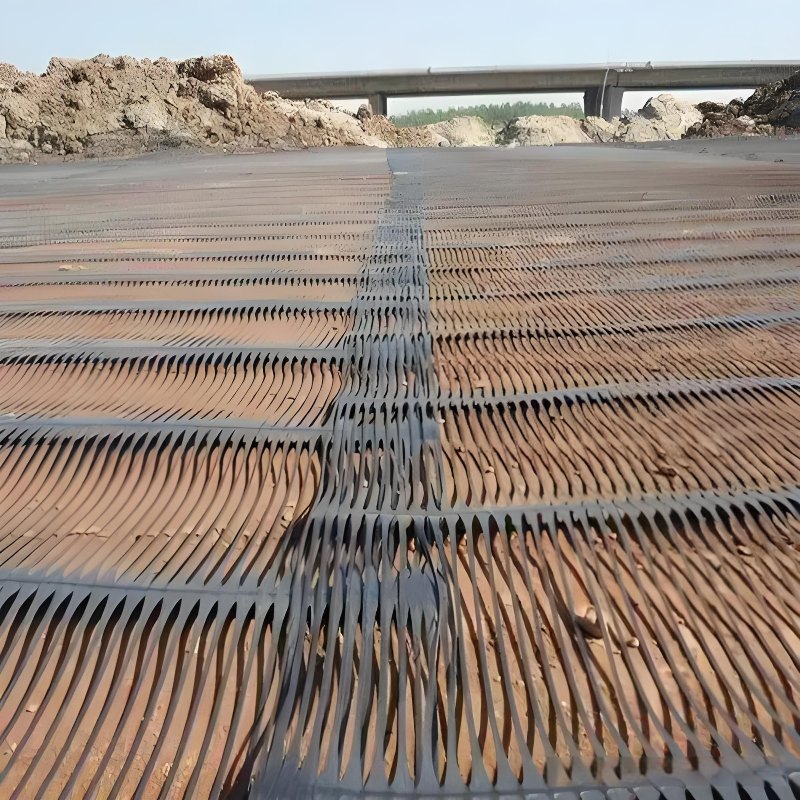

Retaining Walls: Geogrids anchor backfill to create vertical or near-vertical slopes.

Slope Stabilization: Applied between soil layers to distribute loads and reduce the risk of slip.

Advantages:

High tensile strength (up to 80 kN/m) and long-term creep resistance.

Compatible with vegetated slopes, providing both mechanical and ecological protection.

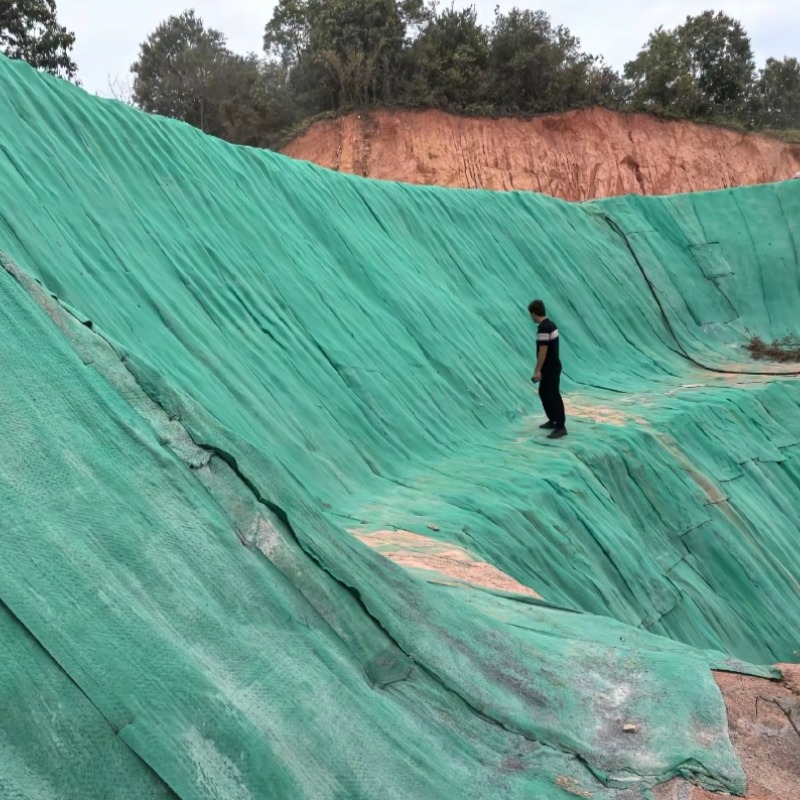

Function: Biodegradable or synthetic mats that protect soil and promote plant growth.

Applications:

Newly excavated slopes: ECMs protect exposed soil from rainwater erosion until vegetation matures.

Riverbanks: Coconut fiber or polypropylene mats stabilize riverbanks while allowing root penetration.

Benefits:

Degradable materials (such as jute) organically enrich the soil.

Synthetic fiber mats (such as PET) provide 5-10 years of protection.

For complex slopes, integrated solutions maximize performance:

Geogrid + Geobag + ECM: Combines soil reinforcement, toe support, and surface protection.

Concrete Canvas + Geogrid: Provides immediate protection and long-term stability.

Case Study: Geogrids with anchors and erosion-control mats were used on the 47-meter-high Shenzhen Xiannuowei slope, reducing landslide risk by 90%.

Geosynthetics such as geobags, concrete canvas, and geogrids have revolutionized slope protection by combining engineering rigor with ecological benefits. They are adaptable to a variety of terrains, from highways to mining areas, and are an integral part of modern infrastructure.
